- Size: 14
- Place of Origin: Shandong Linyi
- Brand Name: The more
- Model Number: QT4-15
- Weight: 5000.000 kg
- :
- :
- :

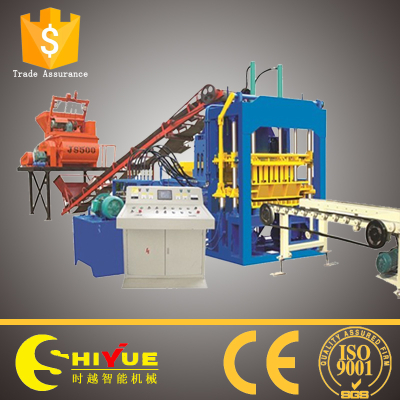

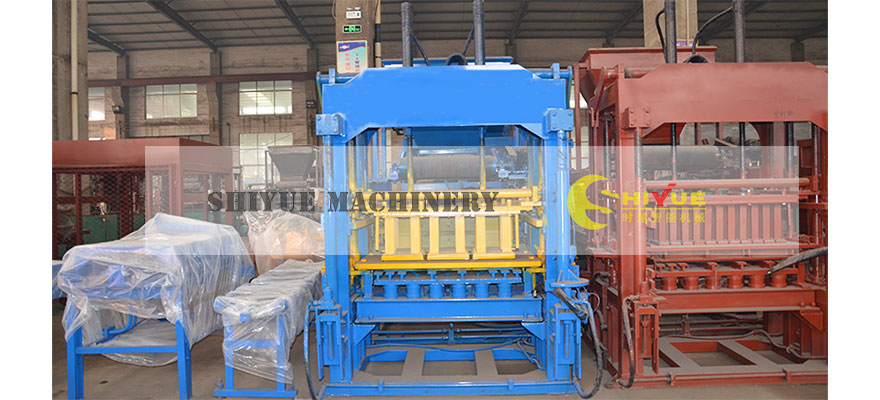

QT4-15 automatic hollow block machine is controled by PLC and makes block by both hydraulic press and vibration.So the block strength and density is high. It can produce hollow block, solid brick, color paving brick, grass block, garden block, curbstone and so on by changing molds.
- Size: 14
- Place of Origin: Shandong Linyi
- Brand Name: The more
- Model Number: QT4-15
- Weight: 5000.000 kg
- :
- :
- :
Technical Parameters of QT4-15 block machine
Overall Dimension | 7100*1600*2610mm |
Rated Pressure | 16-21MPa |
Main Vibration Form | Platform Vibration |
Vibration Frequency | 4600 ( r/min) |
Pallet Size | 1020*570mm |
Molding cycle | 15-25 (s) |
Overall Power | 27.5kW |
Vibration Force | 45KN |
Total Mass | 6T |
Demolding method | Hydraulic |
General water consumption | 12T/Day |
Factory Area | 500m2 |
Applied Products | Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc. |
Raw Material | Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material , etc. |
